Anritsu MG36241A
kostenfreies Angebot
Bestellware, Lieferzeit auf Anfrage
SSB Phase Noise: -136 dBc/Hz (typical) and -140 dBc/Hz (measured) @ 10 GHzoutput, 10 kHz offset,

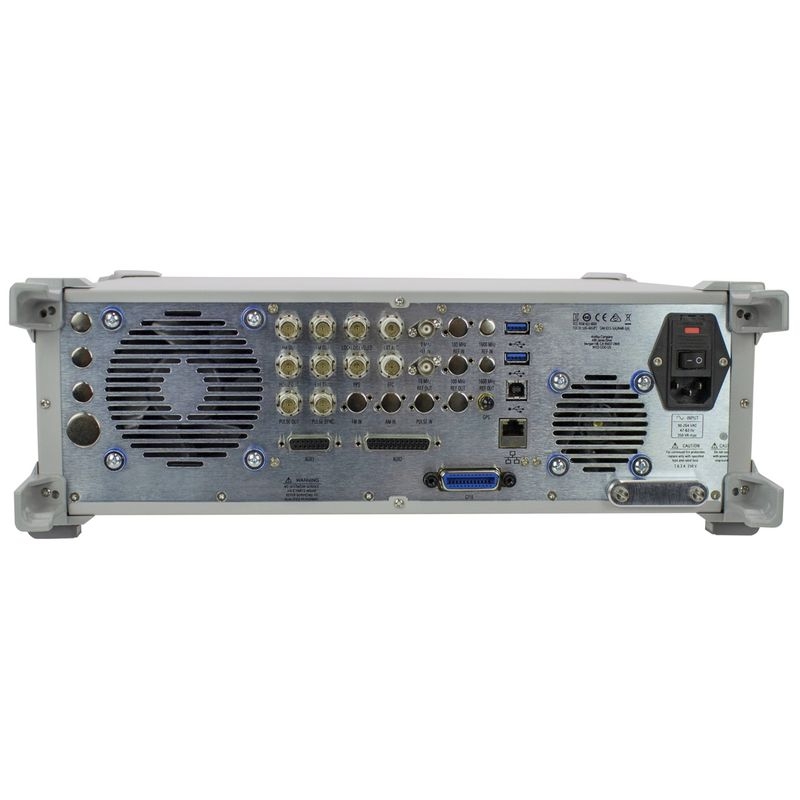

Harmonics: of < -58 dBc and spurious < -63 dBc , Time Base Stability - Aging: < ±5 x 10-7 (optional: < ±2 × 10-8 per year - Option 3, < ±1 x 10-9 per year - Option 56 - Rubidium Clock Timebase), Schnittstelle: Ethernet (VXI-11), USB, GPIB, AUX I/O
Signal purity determines quality of measurements in several applications such as radar, transceiver, ADC/DAC and components testing. Rubidium™ pushes the envelope in phase noise performance with its low and ultra low phase noise options. Coupled with best-in-class harmonic and spurious performance, Rubidium signal generator offers industry leading overall signal purity performance, that enable customers to make more accurate measurements.
Rubidium MG362x1A offers atomic clock frequency stability with an internal rubidium frequency reference option. Alternatively, customers can also get exceptional frequency stability by locking an internal oven controlled crystal oscillator (OCXO) reference to an external GNSS/GPS signal. The exceptional frequency stability makes Rubidium an ideal signal generator for Metrology and high speed clock applications.
Rubidiums AM, FM/PM and Pulse modulation capabilities enable generation of wide range of complex analog modulated signals. Simultaneous modulation of AM/FM, AM/PM, or FM/Pulse is possible to generate complex modulation waveforms such as chirps. Wide range of signal simulation capabilities are built into the signal generators for pulsed radar testing, as well.
Rubidium MG362x1A provides optional onsite level and frequency calibration capability. This makes it very easy to verify and ensure frequency and level accuracy of the instrument at your convenience. It is a utility feature that also enhances instrument availability.

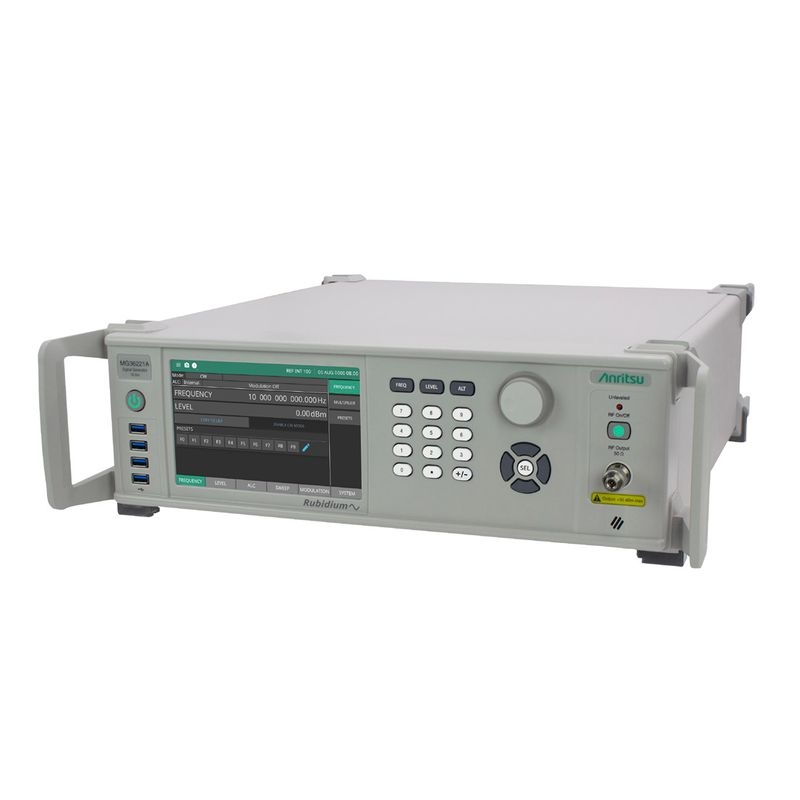

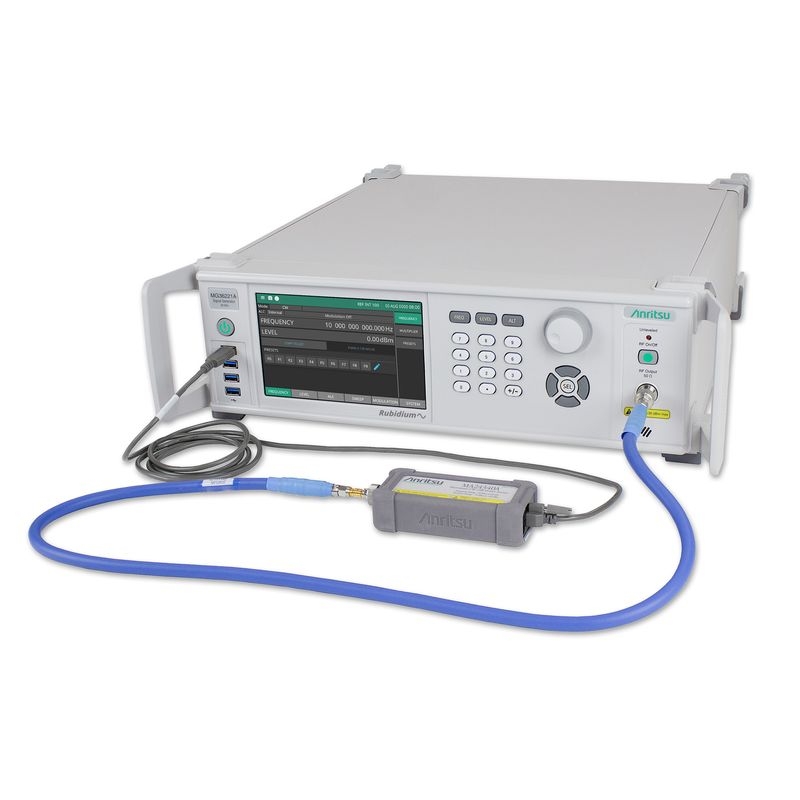

Rubidium features a 7 inch touch screen along with keypad and dial on the front panel. Four USB 3.0 ports on the front panel enable connecting to a variety of devices such as memory devices and Anritsu's USB power sensors. Standard drivers such as IVI.NET and IVI-C along with support of SCPI commands make remote programming of Rubidium quick and efficient.
Delivering the highest purity and frequency stability levels of performance available in a RF/Microwave Signal Generator.
- Non-linear measurements
- Single tone distortion – P1dB compression point
- Two tone intermodulation – IP2, IP3
- In band and out of band interference (C/I, Blocking)
- Devices and Systems characterization
- Pulse modulated signal source to test Radar systems
- As pure CW source for LO substitution in testing of transceiver chains
- Clock and CW source for testing Gbit data converters (ADCs and DACs)
- Swept linear measurements
- As additional source/s synchronized with vector analyzer
- Frequency Reference
- Calibration and Metrology labs
| Frequenzbereich: | 9kHz - 43,5GHz |
|---|---|
| Kanäle: | 1 |
| Produktserie: | Anritsu-MG362x1A |
Zubehör
Anritsu 01-200
1.35 N·m (12 lbf·in)
Anritsu 01-201
Anritsu 01-203
Anritsu Adapter - Serie 510, 1091
Anritsu Precision Adapter - Serie 34, K22xB, K23xB, V23xB
The K220 and 34V Series of precision adapters enable accurate measurements with K or V connectors.
Every adapter is fully specified and 100% tested to ensure low reflections and optimum performance over the DC to 65 GHz range.
Precision K and V adapter features
- K Connector® DC to 40 GHz frequency range
- V Connector® DC to 65 GHz frequency range
- Low SWR and insertion loss
The K230 Series is the panel-mount version of the K220 Series Adapters.
These units mount in a standard 9.5 mm “D” hole.
K and V panel adapter features
- Precision, panel-mounted feedthru adapter
- Broad, DC to 65 GHz frequency range
Anritsu Precision Fixed Attenuators - Serie 41KC, 41KB, 41V, 41W
Anritsu Test Port Kabel - Serie 15
Anritsu Test Port Kabel - Serie 3670/3671
Anritsu 760-297-R
Anritsu a.sure-ad3
a.sure accidental damage, nachträglich bestellbar (6 Monate),
(Begrenzt auf eine Unfall-Reparatur pro Jahr, sowie jegliche Reparatur, die nicht durch einen Unfall oder unsachgemäße Benutzung generiert wurde, kein Ersatz, falls das Gerät irreparabel ist). Weitere Informationen finden Sie unter: https://www.calplus.de/anritsu-a-sure-ad3.html
