Keithley 2600-PCT-1B

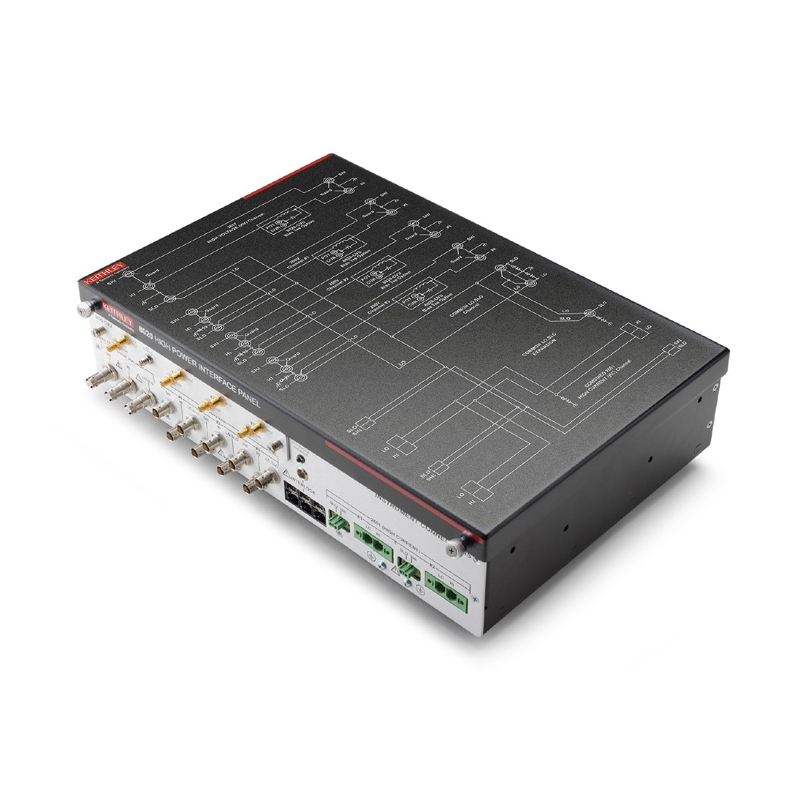

bestehend aus: Keithley SourceMeter 2636B inkl. Kabel für die Verbindung zum Keithley 8010 Text Fixture oder 8020 Power Interface Panel,
KUSB-488B GPIB USB Adapter, TO-247 Power N MOSFET
| Option: | Low Power |
|---|---|
| Art: | Curve Tracer |
Zubehör

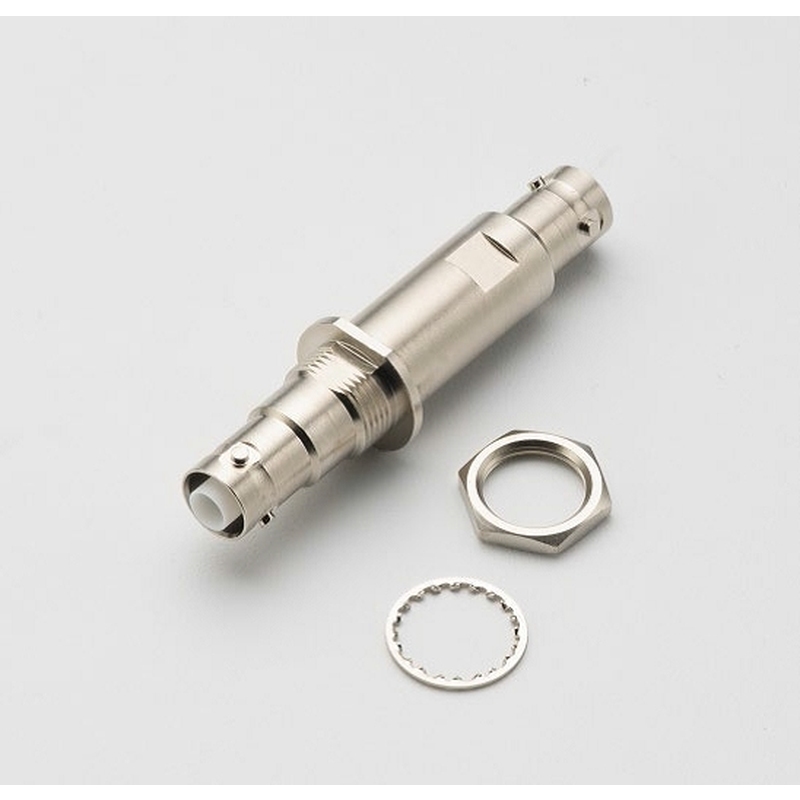

Keithley HV-CS-1613

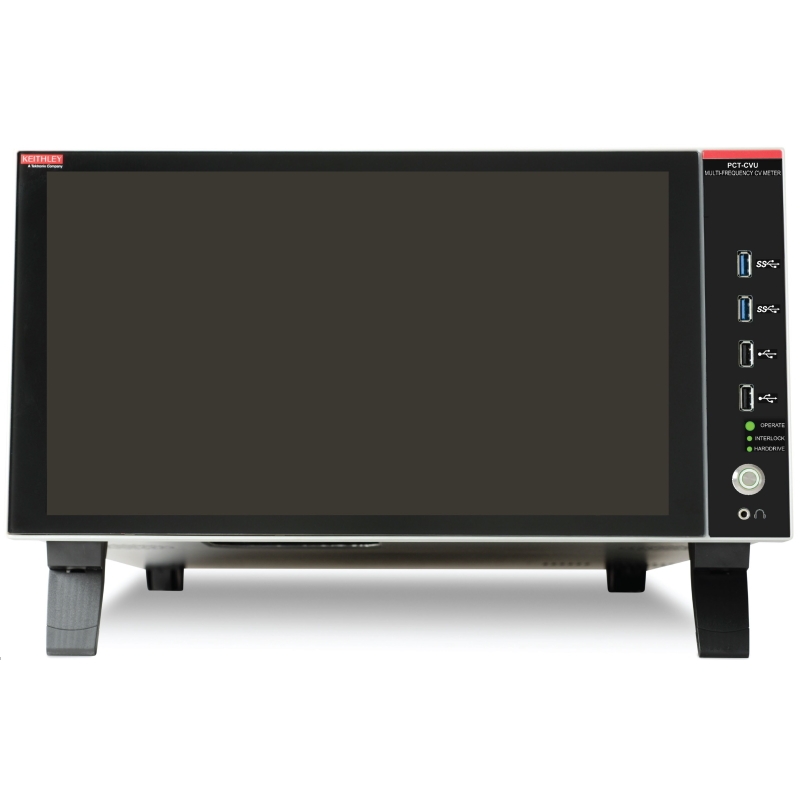

Keithley PCT-CVU
The Keithley Instruments PCT-CVU is a capacitance-voltage (C-V) instrument sold as an accessory to the Model 2600-PCT-xB line of parametric curve tracers. The unit consists of a Keithley Instruments Model 4200A-SCS Parameter Analyzer with a factory-installed 4215-CVU C-V measurement card.
The PCT-CVU is a specifically-configured Model 4200A-SCS; no other 42xx cards may be installed in the unit. To upgrade the instrument with other 42xx cards, you must return the instrument to the factory for an upgrade. Contact your Keithley Instruments applications engineer for details.
The PCT-CVU is supplied with both Clarius+ measurement software and ACS Basic measurement software installed. ACS Basic software requires a license key, purchased separately. Otherwise, a 30-day software trial period is enabled.
If a bias voltage of less than 30 V is required, a bias tee kit is not necessary. If a bias voltage of greater than 30 V is required, select the appropriate bias tee kit. The PCT-CVU can be used with the CVU-200-KIT or CVU-3K-KIT bias tee kits or the Model 8020 with the 8020 bias tee / C-V-installed option to enable high voltage capacitance measurements. When a bias tee option is used along with the PCT-CVU for C-V measurements, either ACS Basic or ACS Standard software is required.
