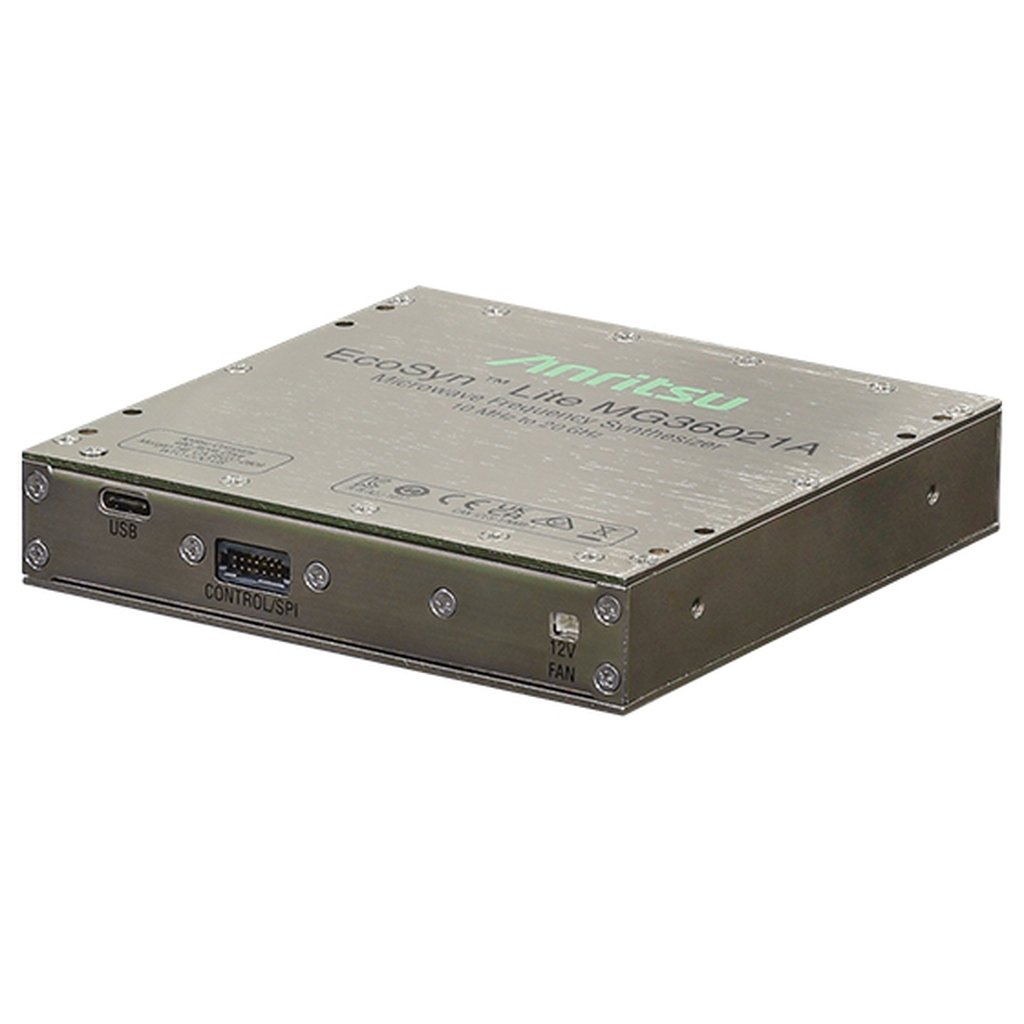

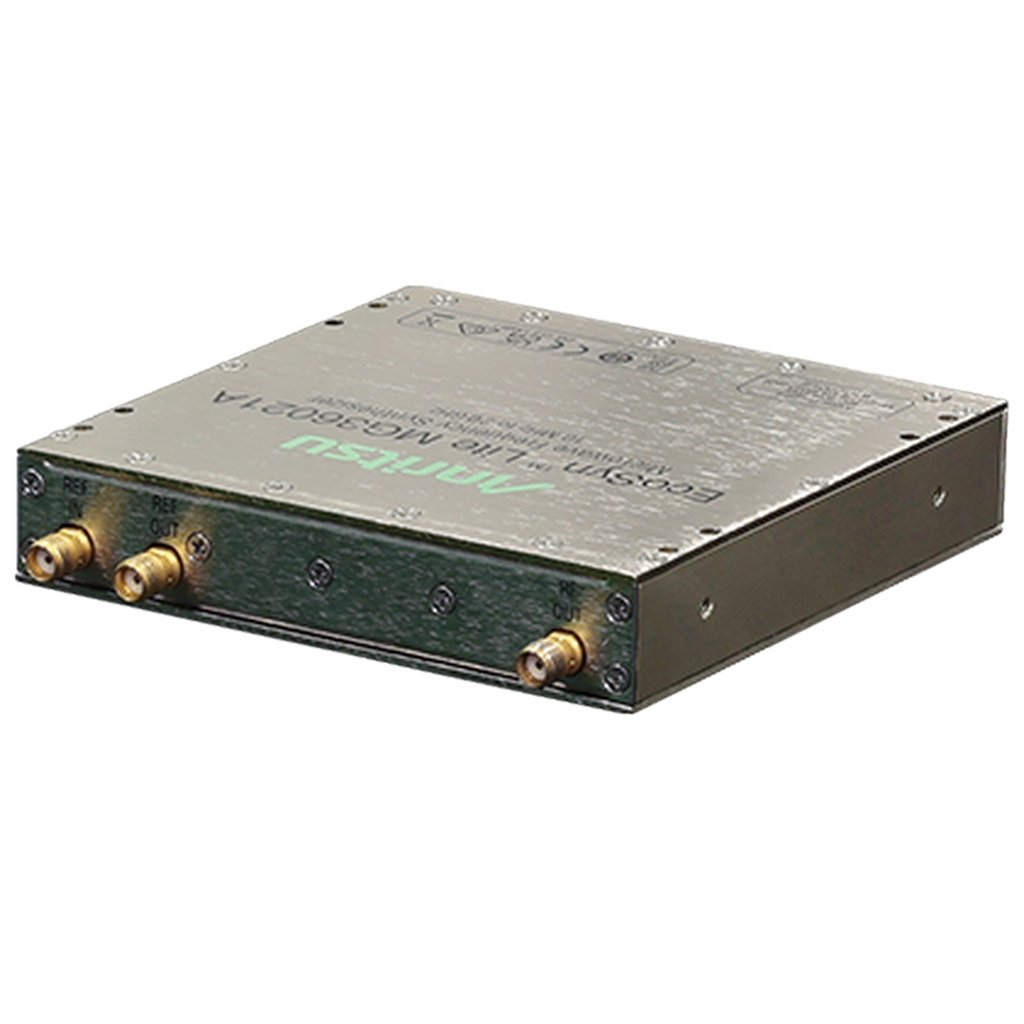

Anritsu MG36021A
SSB Phase Noise: -126 dBc/Hz (typical) @ 10 GHz output, 10 kHz offset,
Frequency Switching time: 50 µs (triggered List mode), Max Output power; +18 dBm at 20 GHz, Schnittstelle: USB, SPI

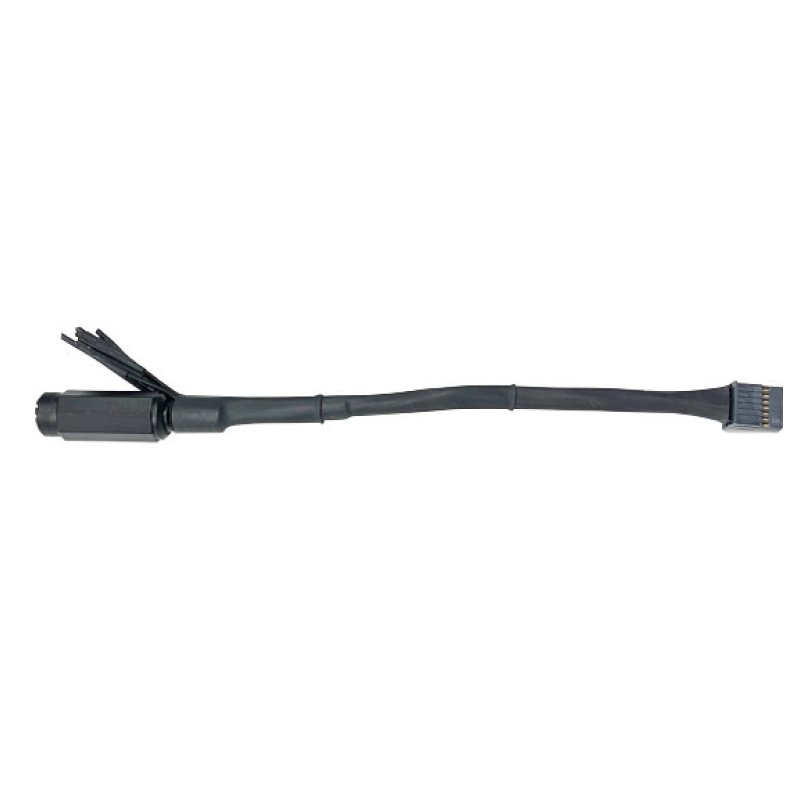

Lieferumfang: Netzteil, Development Cable [2100-43-R], USB 3.0 Type-C to Type-A Cable [2000-1859-R]

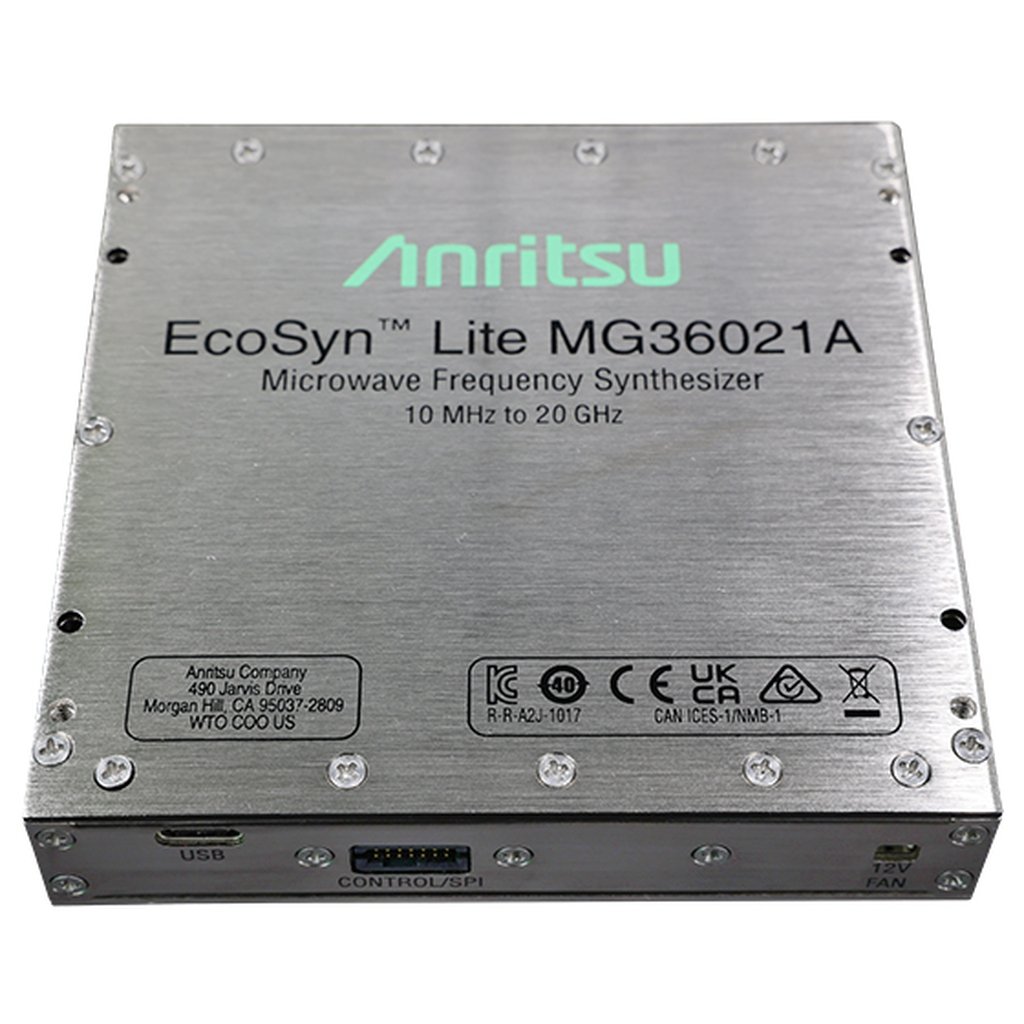

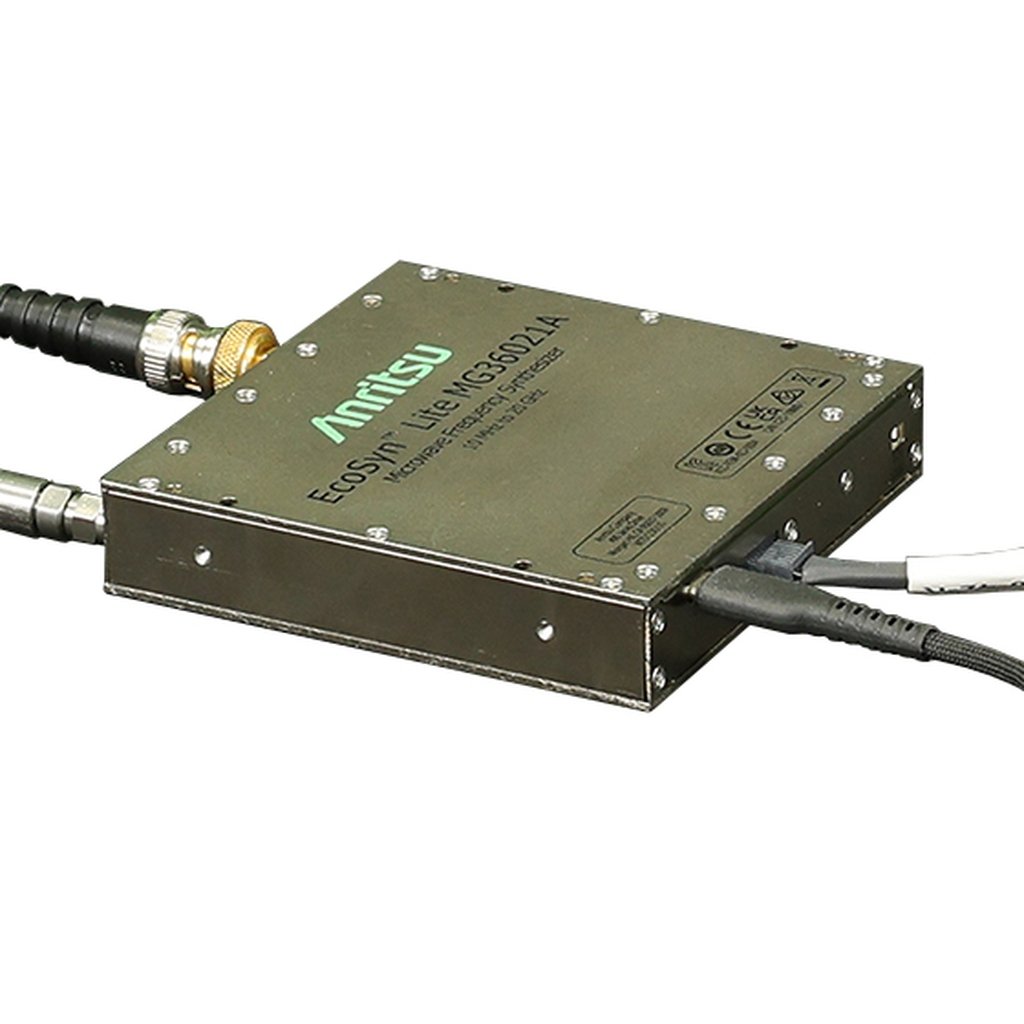

Der EcoSyn Lite MG36021A von Anritsu ist ein hochpräziser, kompakter CW-Mikrowellen-Synthesizer, der im Bereich von 10 MHz bis 20 GHz arbeitet und sich ideal für Embedded-, ATE- oder System-Design-Umgebungen eignet. Dank seines herausragenden Phasenrauschverhaltens, schneller Frequenzumschaltzeiten und robuster Ausgangsleistung bringt der Synthesizer Bench-Performance in modularem Format.
Das Gerät unterstützt sowohl USB als auch SPI (mit SCPI und QuickSyn® nativen Befehlen), was eine einfache Automatisierung und Integration in bestehende Test-Setups ermöglicht.
- Frequenzbereich: 10 MHz bis 20 GHz
- Auflösung: 0,001 Hz
- Umschaltzeit: < 50 µs
- Max Output Power: +18 dBm bei 20 GHz (typisch)
- Non - Harmonics: ≤ –60 dBc
- SSB Phase Noise: z. B. –126 dBc/Hz @ 10 GHz, 10 kHz Offset
- Frequenzstabilität: ± 0.3 ppm / ± 0.5 ppm/year
- Interne Referenz: 10 MHz OCXO
- Schnittstellen: USB, SPI
| Frequenzbereich: | 10MHz - 20GHz |
|---|---|
| Kanäle: | 1 |
